PK 11.001 SLD 3
SINGLE LINK AND PERFECT POWER TO WEIGHT RATIO OFFER EFFICIENT LOAD HANDLING
- More power on the hook due to Single Link
- Higher payloads due to intelligent lightweight design
- Maximum reliability due to PALTRONIC
- High degree of user-friendliness thanks to optional radio remote control
Technical data
| Max. lifting moment | 10,3 mt |
|---|---|
| Max. lifting capacity | 5700 kg |
| Max. hydraulic outreach | 12,0 m |
| Max. manual outreach | 15,9 m |
| Slewing angle | 400° |
| Slewing torque with 1 gear | 1,3 mt |
| Width folded | 2,32 m |
| Max. operating pressure | 330 bar |
| Pump capacity | 30 - 45 l/m |
| Weight | 1140 t |
Technical data

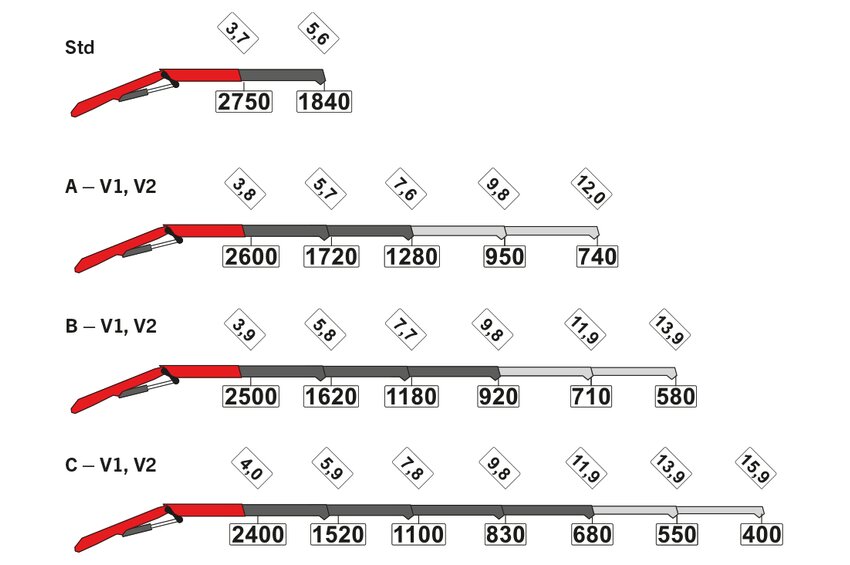

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Std | 10.3 mt | 5.8 m | 400 ° | 1.3 mt | 33.0 Mpa | 30-45 l/min | 1140 kg | 2110 mm | 2400 mm | 720 mm | 5600 mm | - | 1840 kg |
| A | 10.0 mt | 7.8 m | 400 ° | 1.3 mt | 33.0 Mpa | 30-45 l/min | 1250 kg | 2110 mm | 2400 mm | 720 mm | 7600 mm | - | 1280 kg |
| B | 9.7 mt | 9.9 m | 400 ° | 1.3 mt | 33.0 Mpa | 30-45 l/min | 1350 kg | 2110 mm | 2400 mm | 720 mm | 9800 mm | - | 920 kg |
| C | 9.5 mt | 12.0 m | 400 ° | 1.3 mt | 33.0 Mpa | 30-45 l/min | 1450 kg | 2110 mm | 2400 mm | 720 mm | 11900 mm | - | 680 kg |
