PK 65002 SH High Performance

Palfinger nehéz PK 65002 SH High Performance

Maximum Lifting Capacity. HPSC opens up crane applications even in tight spaces.

  • Maximum reliability due to PAL 150
  • More efficiency with fly jip due to DPS Plus
  • Maximum precision and safety due to optinal AOS
  • Increased operating times due to low-maintenance extension system
  • Practical and attractive due to Functional Design

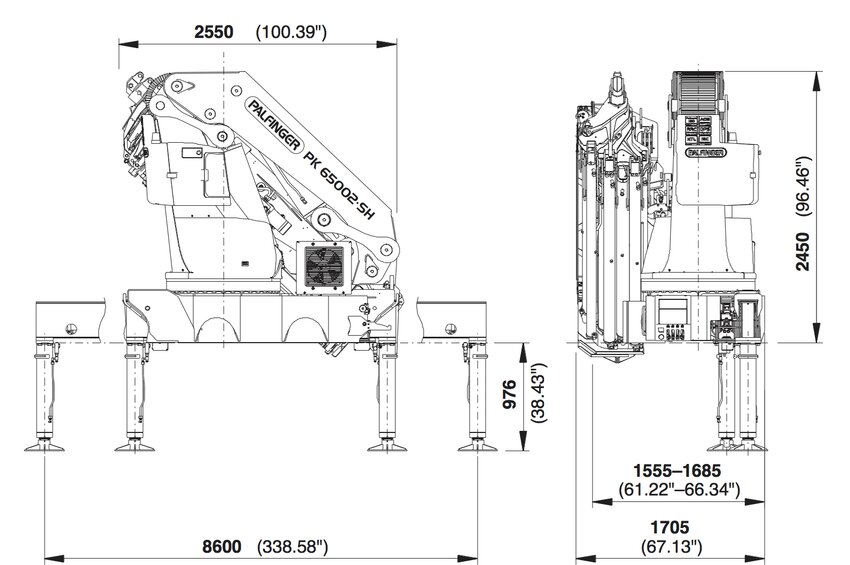

Technical data

Specification
Max. lifting moment62.0 mt
Max. lifting capacity22000 kg
Max. hydraulic outreach20.4 m
Max. manual outreach25.1 m
Max. outreach (with fly jip)32.6 m
Slewing angle
Slewing torque with 1 gear4.5 mt
Slewing torque with 2 gears7.0 mt
Stabilizer spread (std)8.6 m
Max. operating pressure365 bar
Pump capacity100 - 120 l/min
Dead weight (std.)5040 kg

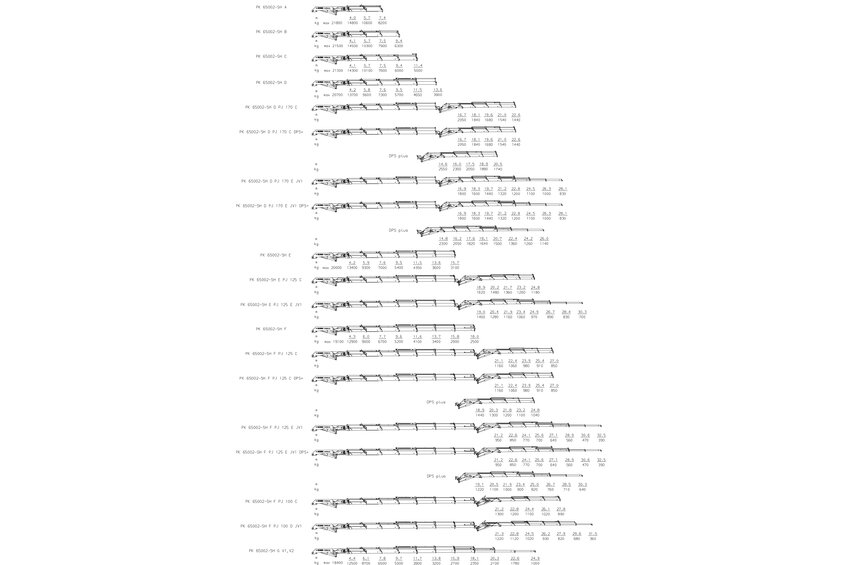

Lifting moment

Lifting momentOutreachSlewing angleSlewing torque (mt)PressurePump capacity (l/min)Crane WeightCrane HeightCrane WidthInstallation WidthMax stroke lenghtMax lifting capacityLoad vertical
mmkgmmmmmtkgkgmmmMpa
A245050402550155560.98200218007433.457.636.5100-1204.5 / 7.0
B245053842550155558.86300215009360.459.536.5100-1204.5 / 7.0
C245056762550155557.950002130011365.4511.536.5100-1204.5 / 7.0
D245060962550155557.139002070013575.4513.736.5100-1207.0
E245064052550158056.131002000015708.4515.936.5100-1207.0
F245066312550168555.525001910017958.4518.136.5100-1207.0
G245068052550168555.121001840020268.4520.436.5100-1207.0


Options

Fly-Jib

PRODUCT FEATURES

A fly-jib system extends the working range of the crane and thereby increases the possible areas of application. The same crane can be used with or without the fly-jib and can therefore be adapted for different applications. Applications with additional attachments (grabber, rotator) and/or cable winch are possible. The higher the quality of the technical configuration of the fly-jib, the more efficient the application of the crane regarding the lifting power and outreach. The high competence of Palfinger in lightweight construction is applied here directly in performance. Through a multitude of model variations, PALFINGER offers a complete, highly developed fly-jib system series for cranes from 15 to 150 meter tonnes.

HOW IT WORKS

A fly-jib is a removable, hydraulic extension on the end of the extension system of the crane that can be offset through a hydraulic kinking function. A fly-jib can also be moved under load.

Cable Winch

PRODUCT FEATURES

A cable winch is the most important accessory in many cases when using a fly-jib crane. Hence the power of the winch itself determines the efficiency of the entire crane to a great extent. When designing cable winches, the greatest possible attention was paid to the lifting capacity, speed and optimum winding behaviour.

HOW IT WORKS

By using an axial piston motor, both very high starting torque under load as well as very high cable speed are achieved. The installation of the motor and brake as a unit inside the drum produces very compact dimensions.

Hose equipment for two additional hydr. functions

PRODUCT FEATURES

With the hose rig, it is very easy to connect additional attachments (fly jib, rotator,...). The hose rig is installed protected in the hose troughs.
