PK 9002-EH High Performance

Palfinger light PK 9002-EH High Performance

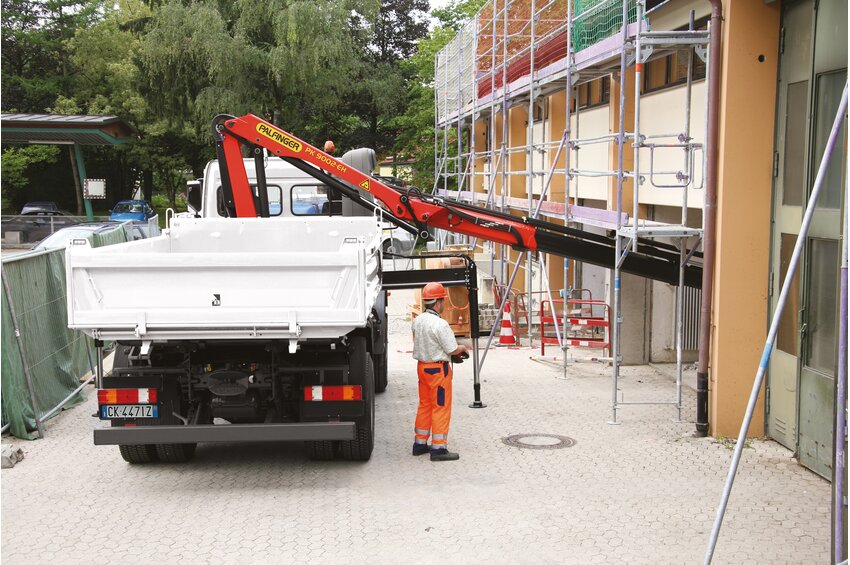

Power Link Plus enables you to work in tight spaces - even in side buildings

  • Perfect appearance and the highest value retention due to coating technology
  • More lifting power due to E-HPLS
  • High operator friendliness due to optional radio remote control
  • Increased operating times due to low-maintenance extension system
  • Maximum utilisation of the working range due to HPSC

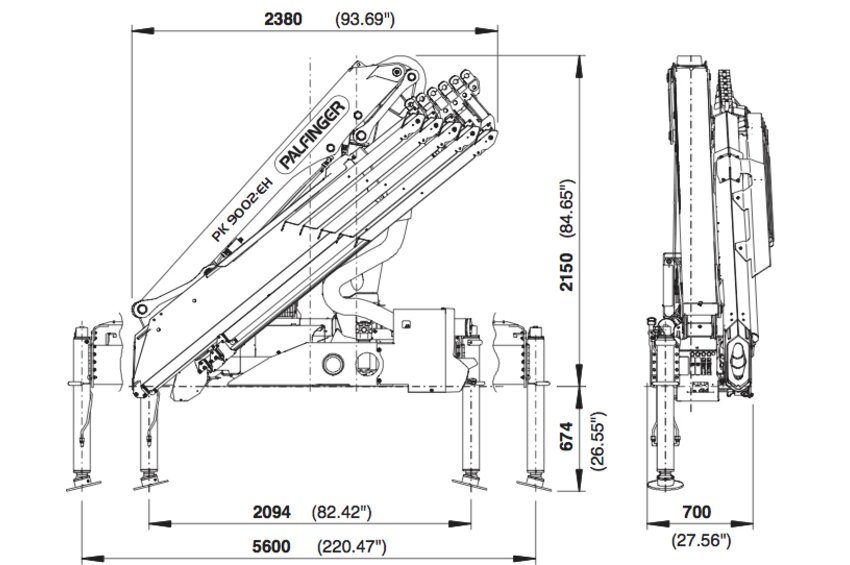

Technical data

Specification
Max. lifting moment9.1 mt
Max. lifting capacity5700 kg
Max. hydraulic outreach14.1 m
Slewing angle400°
Slewing torque with 1 gear1.0 mt
Stabilizer spread (std)32 m
Fitting space required (std)0.70 m
Width folded2.33 m
Max. operating pressure350 bar
Dead weight (std.)1069 kg

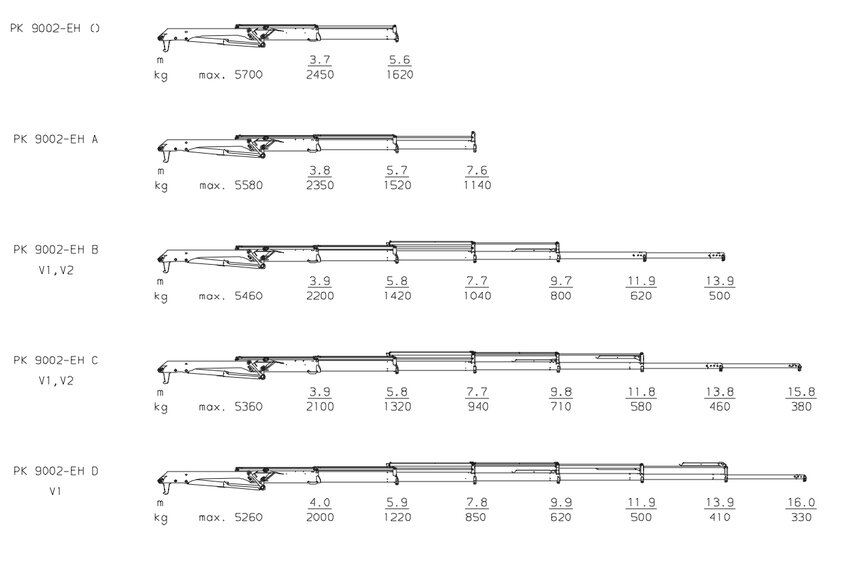

Lifting moment

Lifting momentOutreachSlewing angleSlewing torquePressurePump capacityCrane WeightCrane HeightCrane WidthInstallation WithMax stroke lenghtMax lifting capacityLoad vertical
mmkgmmmmmtkgmmmMpa
Std2150106923257009.116205598.225.835.0-40 - 50 l/min400°1.0
A2150116623257008.8114055807578.227.735.040-504001.0
B2150127123257008.580054609708.229.935.040-504001.0
C2150136723307008.2580536011838.2212.035.040-504001.0
D2150146323807357.9410526013968.2214.135.040-504001.0


Možnosti

Cable Winch

PRODUCT FEATURES

A cable winch is the most important accessory in many cases when using a fly-jib crane. Hence the power of the winch itself determines the efficiency of the entire crane to a great extent. When designing cable winches, the greatest possible attention was paid to the lifting capacity, speed and optimum winding behaviour.

HOW IT WORKS

By using an axial piston motor, both very high starting torque under load as well as very high cable speed are achieved. The installation of the motor and brake as a unit inside the drum produces very compact dimensions.

Hose equipment for two additional hydr. functions

PRODUCT FEATURES

With the hose rig, it is very easy to connect additional attachments (fly jib, rotator,...). The hose rig is installed protected in the hose troughs.
